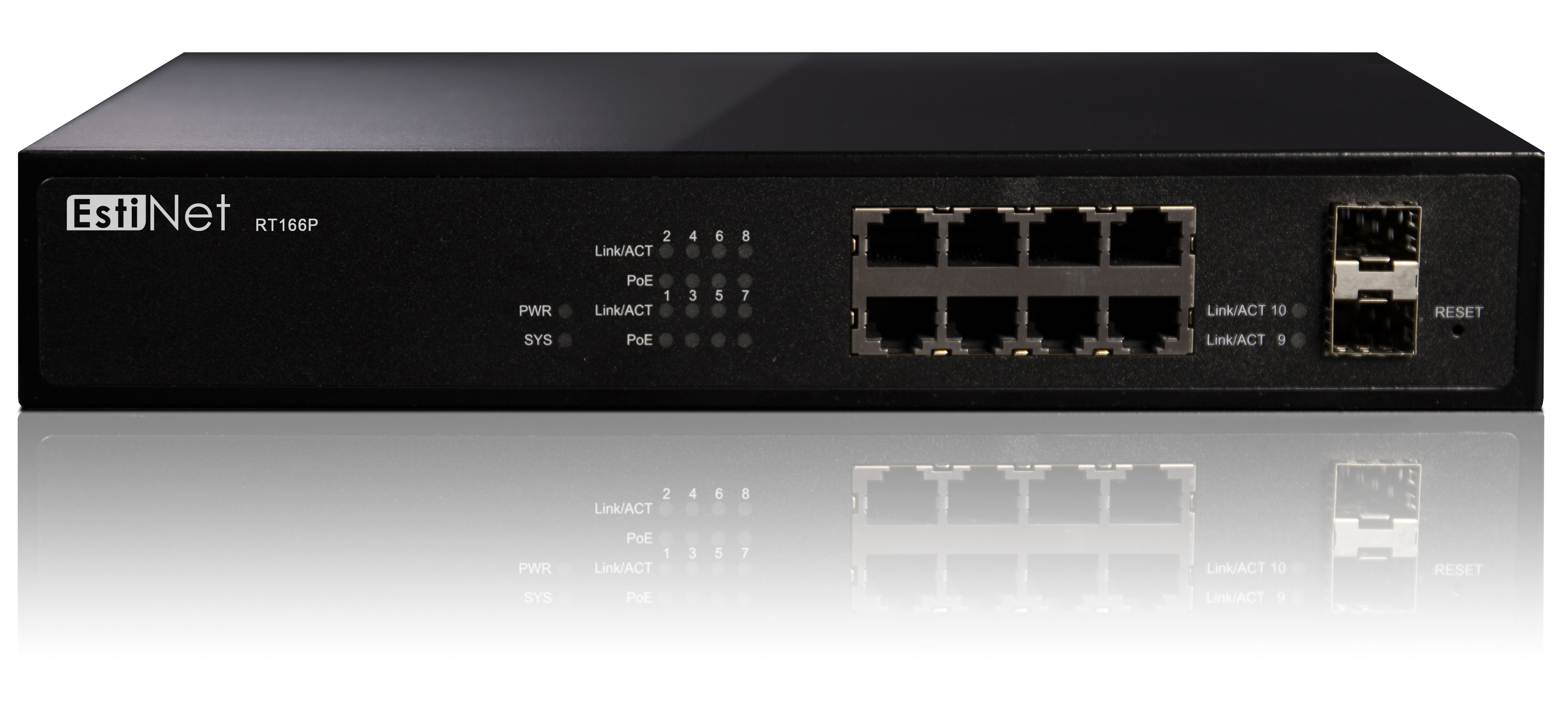

Edge PoE Switch RT166P
Product Overview
RT166P is an innovative SDN edge POE switch for efficient IoT device networking. By collaborating with EstiNet IoT SDN Controller, RT166P can serve as a power supplier for IoT devices, while, at the same time, providing a highly efficient SDN network for device networking management. RT166P is equipped with 8 gigabit RJ45 ports and 2 SFP uplink ports support with 20Gbps forwarding capability. Each RJ45 port of RT166P can provide up to 30-Watt power for a connected device.
Key Features and Benefits
- SDN
- Advanced QoS
- Power Saving
- Powerful Access Control List
- Rich L2 Features
- Useful Security
- Performance and Extensibility
Product Specifications
- Dimension: 266 x 185 x 44mm
- 8*10/100/1000 Mbps RJ-45; 2*1000 Mbps SFP
- LEDs: 1*Power/1*System/8*Port/Link/ACT, PoE
- Fanless
- Power Supply：100-240 VAC, 50/60HZ
- Operating Humidity：10% to 90%
- Operating Temperature：0℃to 40℃
- MAC Address Table: 8K
- Jumbo Frame: 10K Bytes
- Switching Capability: 20Gbps
OpenFlow Features
- OpenFlow Specification: v1.3
- Open vSwitch: v2.1.2
- OVSDB
- Flow Table: 1K
- Meter Table Entry Count: 150 (or higher)
- Counter Entry Count: 90 (or higher)
PoE
- IEEE 802.3af/at (PoE+)
- Provide up to 30W for connecting device
- Total PoE Budget 120W
